AICHI E-SERIES SCISSOR LIFT

Steel Construction On All Panels
110V AC Power to Work Platform
Solid Non-Marking Tires
Forklift Pockets

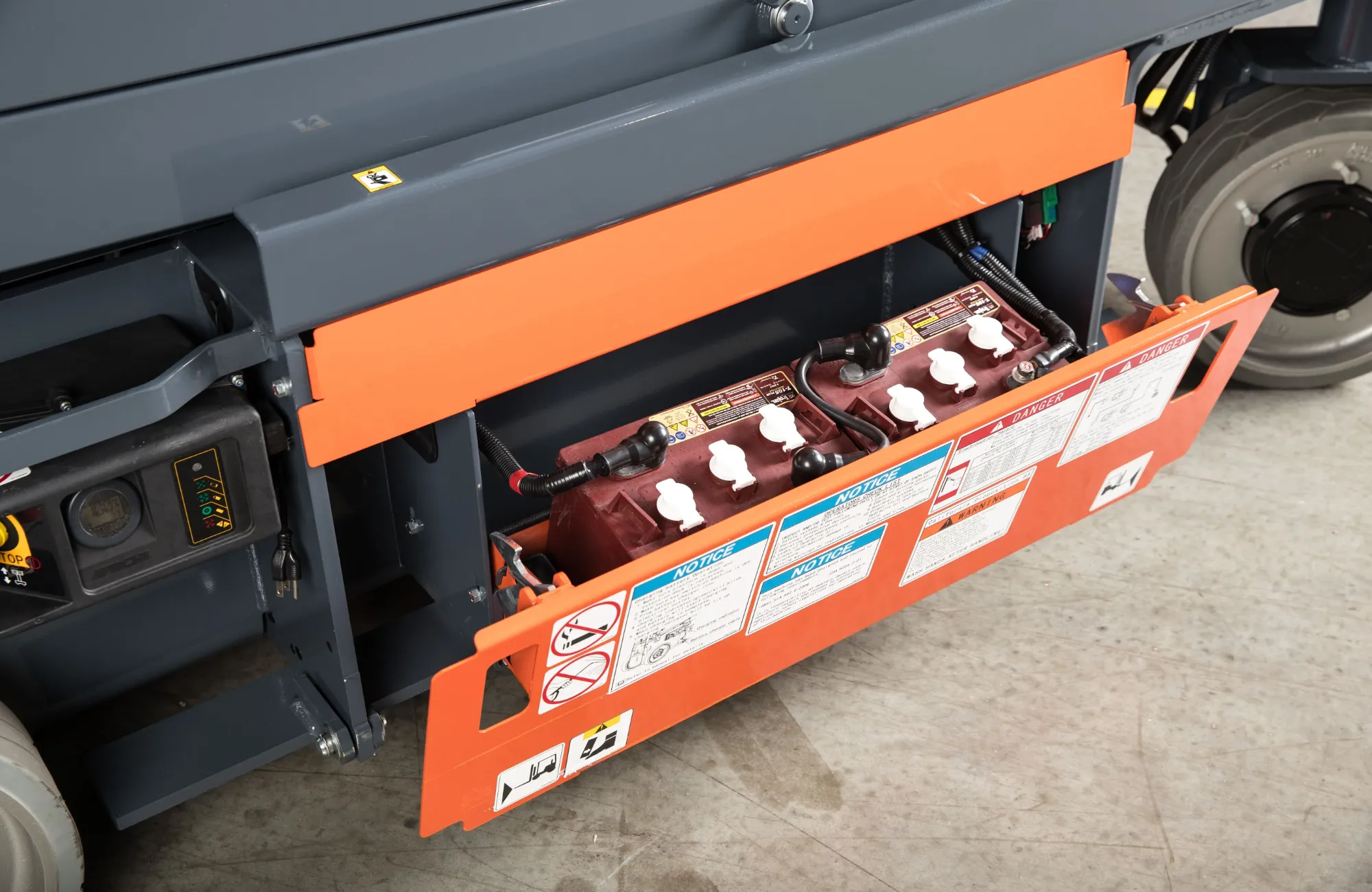

Four 6V, 225AH Deep Cycle Batteries

The five models of the AICHI E-Series Scissor Lift offer working heights of 25, 26, 32, and 38 feet. Working height is calculated by adding six feet to the platform extended height. The versatile offerings can be maneuvered through your facilities to reach up and across obstacles. Contact your AICHI dealer for more information.

Request Quote

MODEL NUMBER	PLATFORM HEIGHT	PLATFORM CAPACITY AT LIFT HEIGHT	PLATFORM LIFT TIME	PLATFORM LOWER TIME	OVERALL WIDTH
SV1932E	19 FT.	505 LBS. AT 228 IN.	26 SECONDS	30 SECONDS	32.1 IN.
SV2032E	20 FT.	790 LBS. AT 240 IN.	28 SECONDS	40 SECONDS	31.9 IN.
SV2632E	26 FT.	505 LBS. AT 307 IN. 795 LBS. AT 236 IN.	33 SECONDS	37 SECONDS	31.9 IN.
SV2646E	26 FT.	705 LBS. AT 382 IN. 990 LBS. AT 311 IN.	40 SECONDS	50 SECONDS	46.1 IN.
SV3246E	32 FT.	705 LBS. AT 382 IN. 990 LBS. AT 311 IN.	55 SECONDS	60 SECONDS	46.1 IN.
